close up of arms showing awinda sensors attached

MVN Awinda Starter is the most affordable Xsens quality mocap hardware

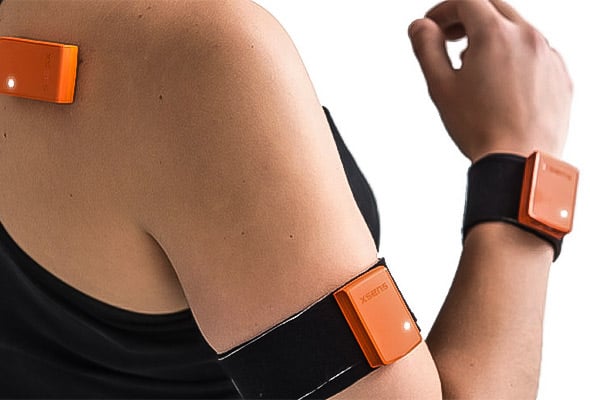

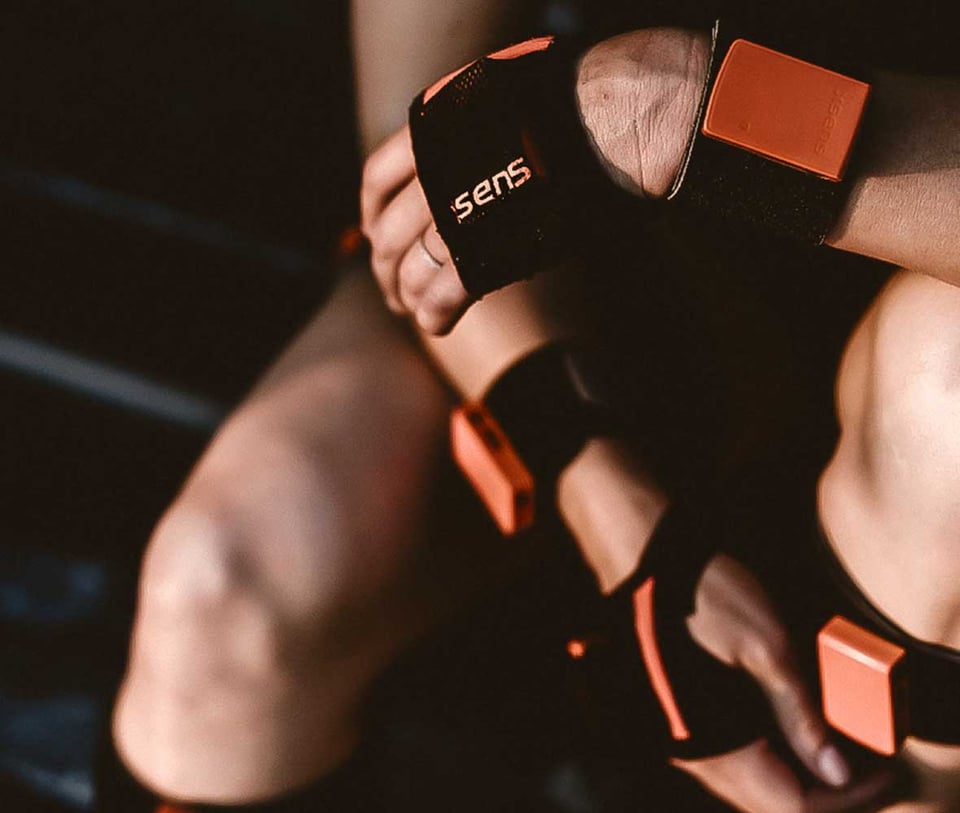

To capture inertial body movement, our MVN Awinda models use 17 wireless sensors, fitted on the body with adjustable straps. This supports fast, easy, and reliable motion capture. Its portability also makes it ideal for group and education settings.



  • Robust and accurate

  • Use anywhere – no lab required

  • Live stream with ease

  • Magnetic immunity

  • Fast set-up time

  • Low latency

  • Affordable

MVN Awinda Starter

Don’t let the name fool you

Asset 24_1x
Comfort

Can be worn over normal clothes.

Calibrated data
Range

Maximum range of 25 m.

Virtual YouTuber, or VTuber
Frame rate

Maximum of 60 Hz frame rate.

MVN Awinda Starter

Specifications



Technical specifications



Update rate

Up to 60 Hz

Wireless range

25 m

Battery life

6 hr

Wireless communication

Radio protocol (Awinda protocol)

Wireless datalink

Dongle antenna

Technical specifications



Clothing

Full body strap set (including 3 Awinda shirts in size S, L & XL)

Charging

USB cables for Awinda sensors, plus a 6-port USB charger

Latency

30 ms

On-body buffering

30 sec

Sensors

17 wireless sensors

Technical specifications



Hardware synchronization

Third party – e.g. EMG sensors, force plate; optional with additional Awinda station

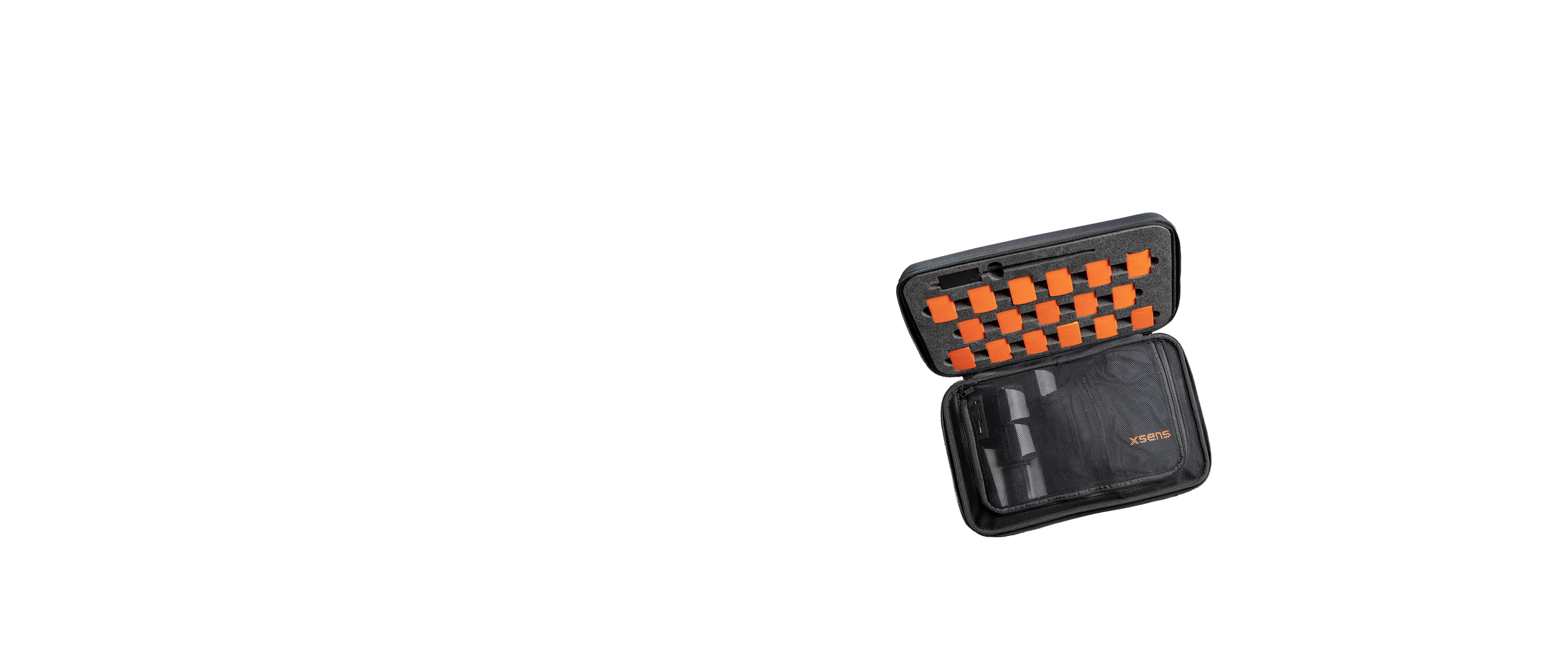

Casing

Neoprene shell case

Finger tracking

Full compatibility with Xsens Metagloves by Manus, Xsens gloves by Manus, Manus Prime II, and Stretchsense gloves

MVN Awinda Starter

Purchase options

mocap-standing-stairs-edited
Xsens MVN Awinda Starter is the most affordable Xsens quality mocap hardware

For only $4,590 you get a full-body strap set with size S, L and XL T-shirts and USB dongle receiver.

Buy now →
cta-mtw-edited
Bundles

We offer smart bundles of hardware, software, and cloud processing options optimized for main motion capture use cases. Get in contact if you need help configuring your system.

Contact us →
