Motion seamlessly captured

Xsens Awinda is a motion capture system with 17 wireless sensors fitted on the body with adjustable straps. It supports fast, easy, and reliable motion capture, making it ideal for regular motions and multiple actors using the same set-up. With a range of up to 50 m, it can be used in a wide variety of applications, including workplace ergonomics, rehabilitation and injury prevention, animation, entertainment, biomechanical science and human factor research. Plus, it can be worn over clothing.



Inertial motion capture requires sensors attached to the body to capture movements. But that’s only the half of it. You need both hardware and software for a full motion capture system.

 MVN Awinda

Intermediate performance

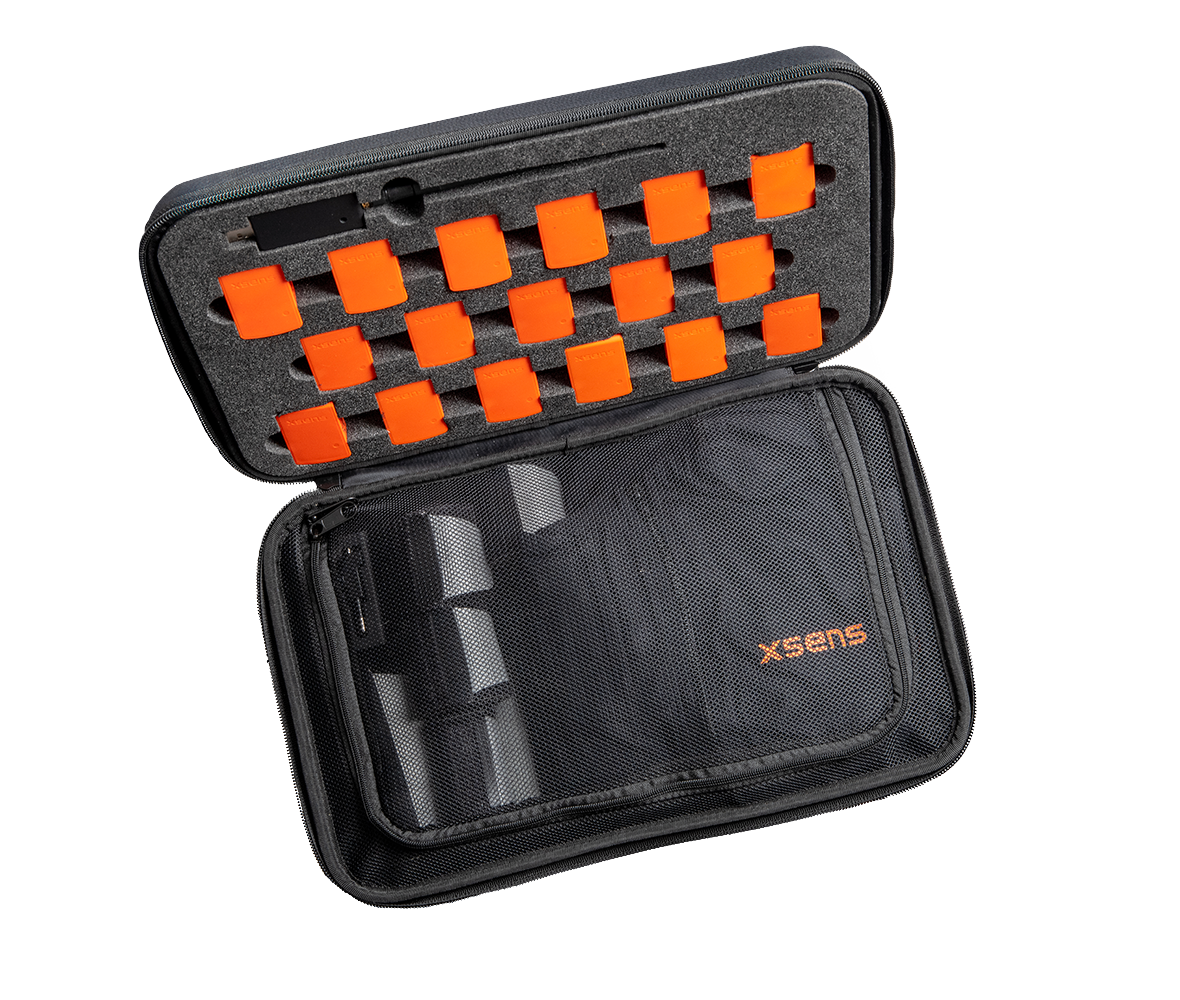

awinda_sensor_bag2
Range

~50 m


Update rate

Up to 60 Hz


Battery life

6 hours


Comms

Radio protocol (Awinda)

Receiver

Awinda station


Hardware

17 (+1) wireless sensors
T-shirts and straps


Charging

Charging stations

Xsens Awinda

Specifications



Technical specifications



Update rate

Up to 60 Hz

Wireless range

50 m

Battery life

6 hr

Wireless communication

Radio protocol (Awinda protocol)

Wireless datalink

Awinda recording and docking station

Technical specifications



Latency

30 ms

On-body buffering

30 sec

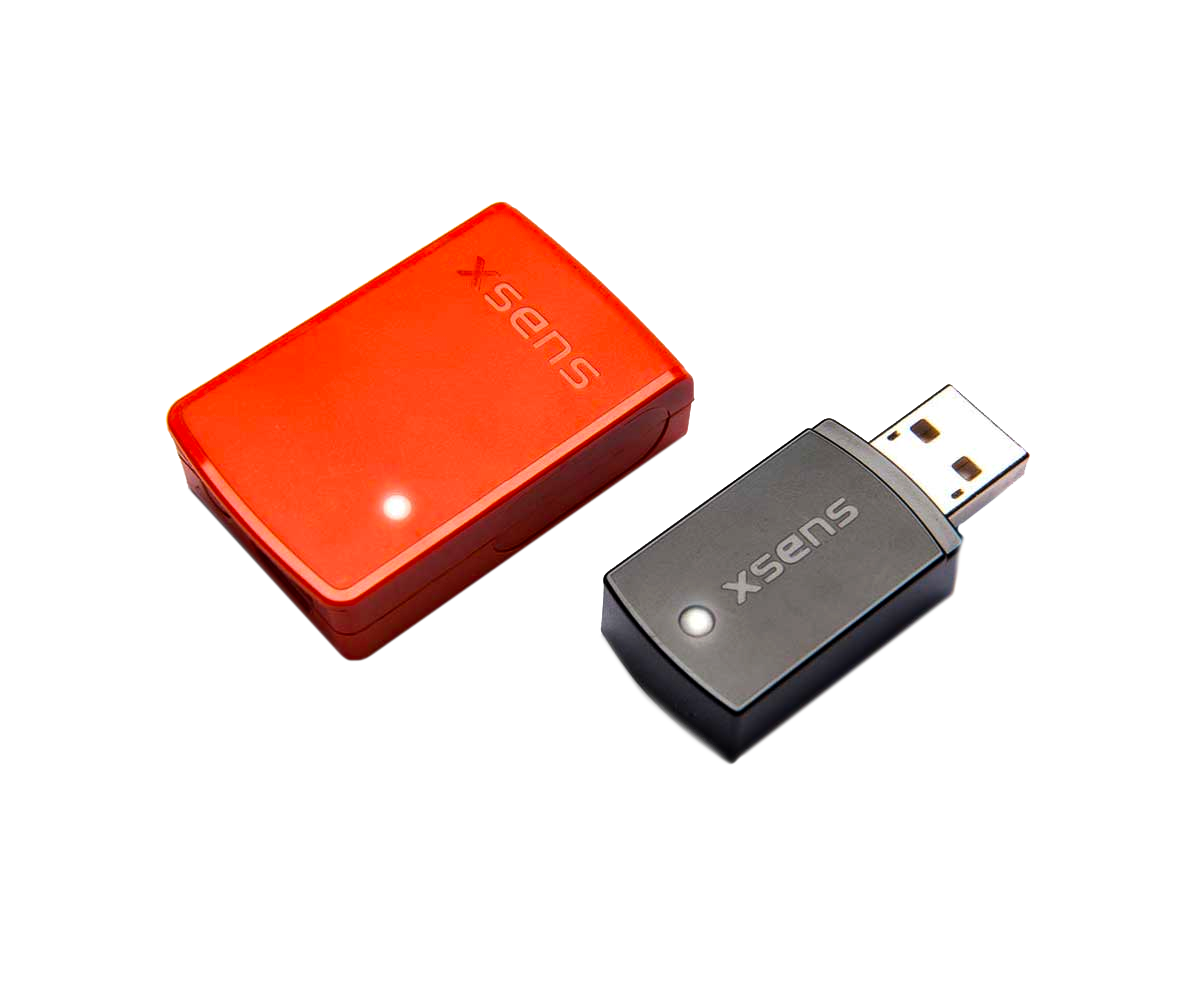

Sensors

17 wireless sensors (and 1 prop sensor)

Clothing

Full body strap set (including 3 Awinda shirts in size S, L & XL)

Charging

Charging stations

Technical specifications



Hardware synchronization

Includes, via BNC connectors Third party e.g. EMG sensors, force plates (with Awinda station)

Casing

Sturdy neoprene case

Finger tracking

Full compatibility with Xsens Metagloves by Manus, Xsens gloves by Manus, Manus Prime II, and Stretchsense gloves

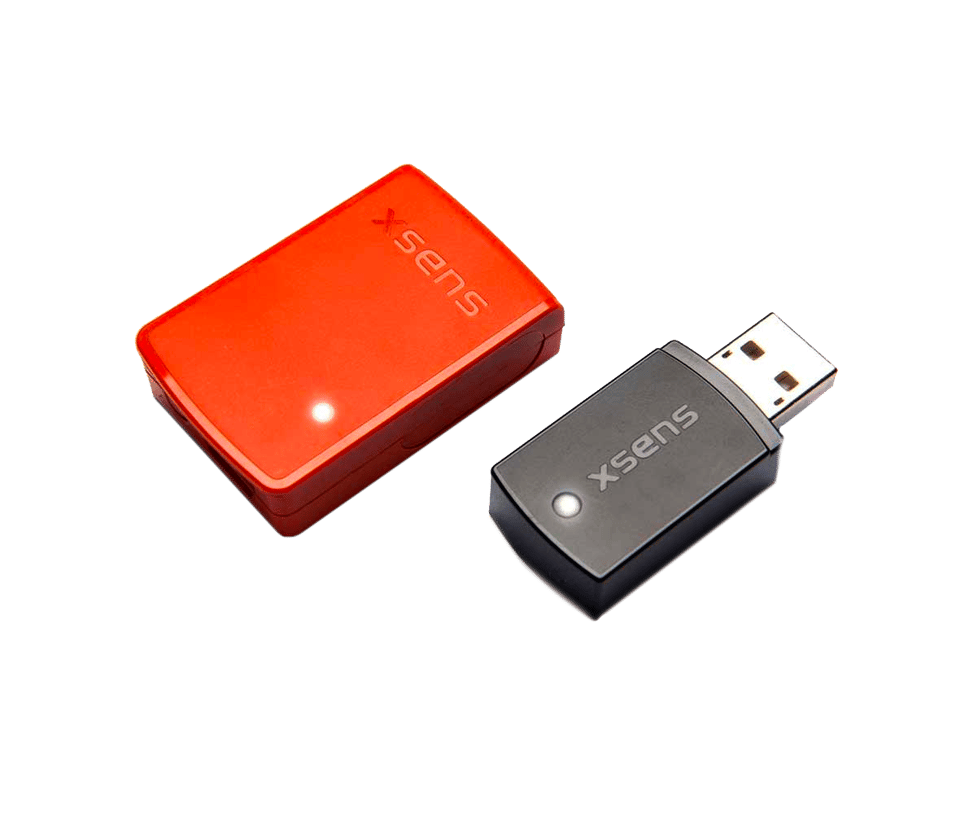

Awinda_sensor

Bundles

We offer smart bundles of hardware, software, and cloud processing options to meet your needs. Reach out to us to learn more or if you need help configuring your system.

MVN Awinda

Application areas

coach
Health and sports

See why motion capture is the secret to preventing or reducing injuries, improving strength and conditioning, and enhancing workplace ergonomics.

Health and sports  →
awinda_research_mand_and_women-running
Research and education

Discover how motion capture can drive innovation in biomechanical research, sports science and human–machine interaction.

Research and education  →
virtual_liveshow-piano-1
Entertainment

Thanks to motion capture, we’ve taken cinematic productions, gaming, vtubing, and streaming to another level.

Entertainment →
awinda_case3
awinda_case2
awinda_case4
awinda_case1

Next-level gait analysis at the university of Bologna

The University of Bologna has taken its motion analysis capabilities to the next level with Xsens’ brand new automated Xsens Reports.

Learn more  →

Revolutionizing patient-centered care with Xsens Reports

Pro-F is a professional performance center providing expert physical care to general patients and athletes across a wide range of sports.

Read the blog →

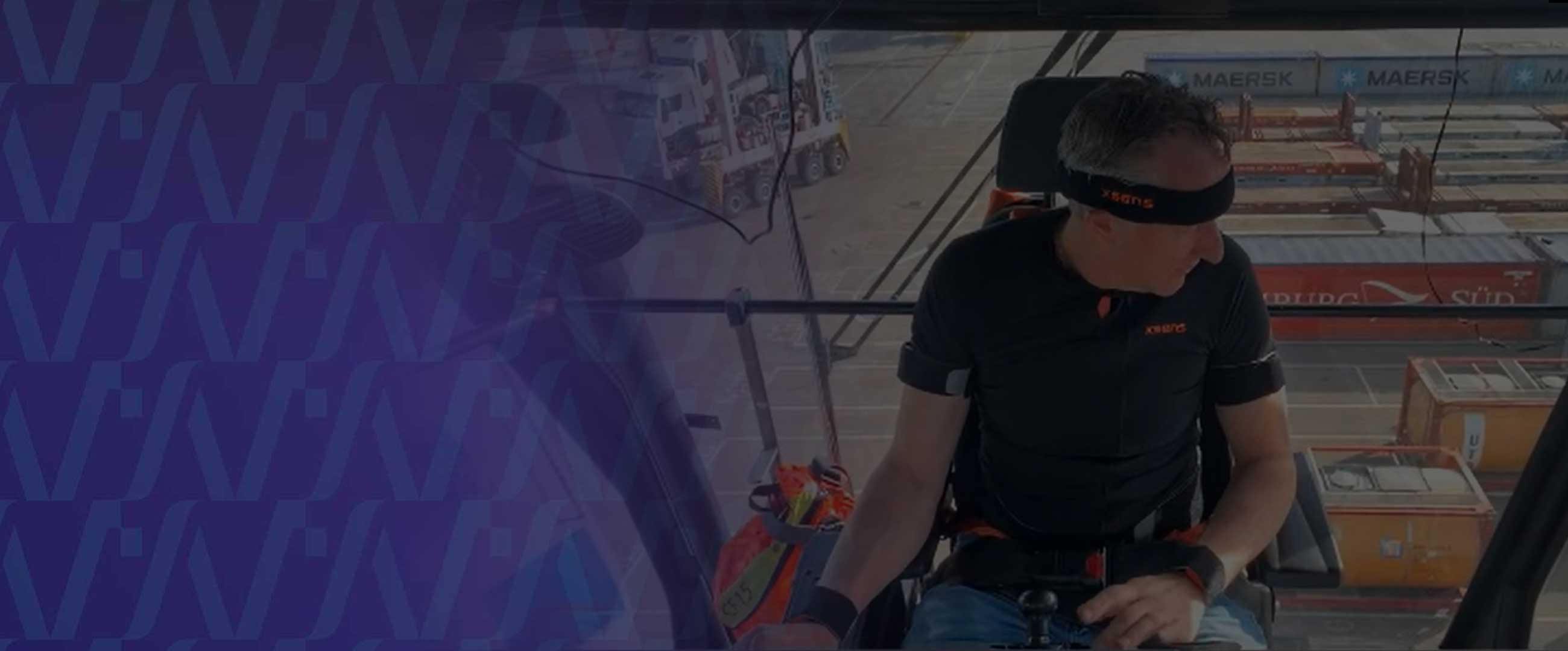

Investigating the extreme neck movements of straddle truck operators using Xsens Analyze
