Xsens Awinda

An easy-to-use wireless motion capture system
for a wide variety of applications.

Motion seamlessly captured

Xsens Awinda is a motion capture system with 17 wireless sensors fitted on the body with adjustable straps. It supports fast, easy, and reliable motion capture, making it ideal for regular motions and multiple actors using the same setup. With a range of up to 50 m, it can be used in a wide variety of applications, including occupational health and safety, rehabilitation and injury prevention, animation, entertainment, biomechanical science, and human factor research. Plus, it can be worn over clothing.

Inertial motion capture requires sensors attached to the body to capture movements. But that’s only half of it. You need both hardware and software for a full motion capture system.

Capturing movement

Inertial motion capture measures movement through a network of lightweight sensors placed on the body. Each sensor tracks orientation and motion, transmitting data to the software for real-time visualization and analysis.

A complete Xsens mocap setup includes both hardware and software.

Specifications

Technical specifications

Magnetic immunity i Yes
Update rate Up to 60 Hz
Wireless range 50 m
Battery life 12 hr
Charging Charging station
Wireless communication Radio protocol (Awinda protocol)
Wireless datalink Awinda recording and docking station

Technical specifications

Latency 30 ms
On-body buffering 30 sec
Sensors 17 wireless sensors (+1 prop sensor)

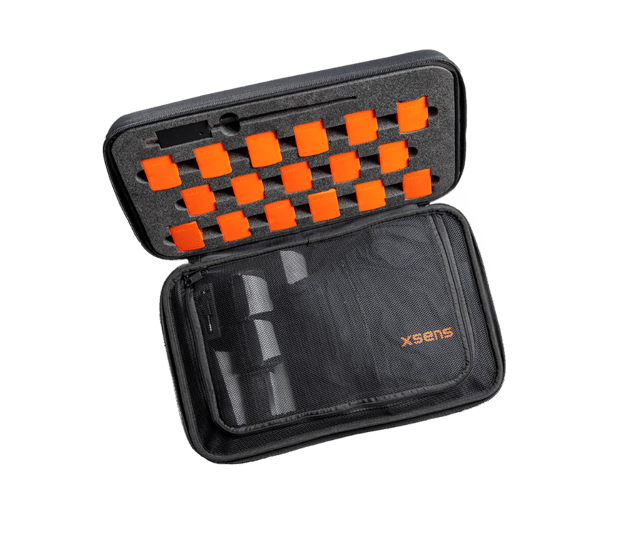

Casing Sturdy neoprene case
Finger tracking integration Manus & StretchSense
Clothing & Sizing Full body strap set + 3 Awinda t-shirts (S, L, XXL)
Hardware synchronization Includes, via BNC connectors Third party e.g. EMG sensors, force plates (with Awinda station)
