Inertial sensor modules

Our expertise, your solutions

Icon of a calibration symbol
Calibrated data

The MTi-1 is a self-contained inertial measurement unit (IMU) that provides calibrated data on the rate of turn, the acceleration and the magnetic field – all in 3D.


Icon of a shield with a tick inside it
Robust and reliable

The MTi-1 calibrates for several biases and parameters, such as temperature. Robust and reliable, it integrates easily with high-volume applications. Best of all, it’s the most cost-effective product for surface mountable device (SMD) integration.


Icon of a box with corner marks inside
Smallest industrial grade form factor

As part of the MTi 1-series, it is among the smallest of its kind available, with each module measuring only 12.1 × 12.1 mm and weighing <1 g.


MTi-1 IMU performance
Accelerometer Calibrated
Gyroscope Calibrated
Strapdown integration (SDI) Yes
MTi-1 Sensing components
Standard full range 2000 deg/s
In-run bias stability 6 deg/h
Noise density 0.003 °/s/√Hz
Standard full range 16g
In-run bias stability 40 µg
Noise density 70 µg/√Hz
Magnetometer onboard
MTi-1 System specifications
IP-rating (equivalent) IP00
Dimensions 12.1 × 12.1 × 2.55 mm
Weight 0.6 g
Input voltage 2.8 to 3.6 V
Power consumption (typ.) <100 mW @ 3 V
Interfaces / IO
Interfaces UART, SPI, I²C
Protocols Xbus
Output frequency: up to 1 kHz


Complete and detailed specifications are available at


Free to download MT Software Suite

The MT Software Suite gives you easy access to the MTi-1 and contains a specially developed, easy-to-use graphical user interface, as well as drivers for various operating systems. It also offers many other useful tools, for example source code and documentation.


The suite comes with complete documentation. Of course, you can also always contact our technical support staff if you have questions.

Icon representing MT Manager (GUI) MT Manager (GUI)

This provides you with easy access to all the functions of your MTi from the comfort of your office. MT Manager enables recording and playback of data, real-time data viewing, including graphs, and easy configuration of settings.

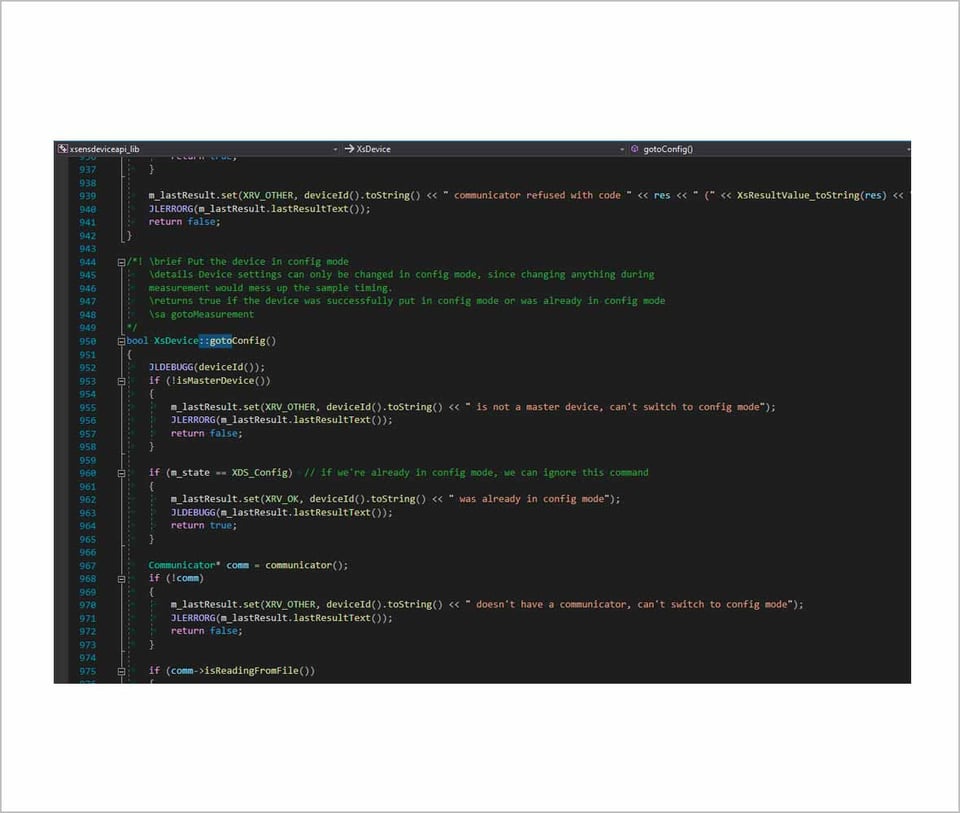

Asset 13_1x MT SDK

This program is for self-developing your software to communicate with our sensor, including programming examples for C, C++, C#, MATLAB, Python, ROS, and Nucleo/STM boards.

Asset 15_1x Magnetic Field Mapper

Magnetic Field Mapper (MFM) is a calibration tool for conducting magnetic calibration, available as GUI for Windows and as SDK.


How deWiz™ enhances
golfing performance
in real time


The low-drift capabilities inherent to the Xsens sensor’s technology mean deWiz can measure a swing nearly instantly with precision under ±1 cm in a 3D space.

Read more →

Ready to buy?

Choose the option that works best for you

development-kit-icon Buy a development kit

If want to work with the MTi-1 for the first time, we recommend getting started with the MTi-3DK.

Icon of a shopping cart Purchase at a local channel partner

You can purchase an MTi-1 via any of our resellers in or near your country or through an online catalogue.


Find your distributor  →

Icon of a speech bubble Request a quote

For any final questions or comparisons, feel free to contact our product support team.



Request a quote →
