An industry-leading development platform

Icon of a calibration symbol
Calibrated data

The MTi-2 is a self-contained vertical reference unit (VRU) featuring sensors that provide calibrated data on the rate of turn, the acceleration, and the magnetic field – all in 3D.

Contact us for information  →
Icon of four caret marks forming a diamond shape
Sensor fusion algorithm

A sensor fusion algorithm computes 3D orientation data based on a gravity reference frame: drift-free roll, pitch, and accurate, unreferenced yaw.

Icon of a box with corner marks inside it
Smallest industrial grade form factor

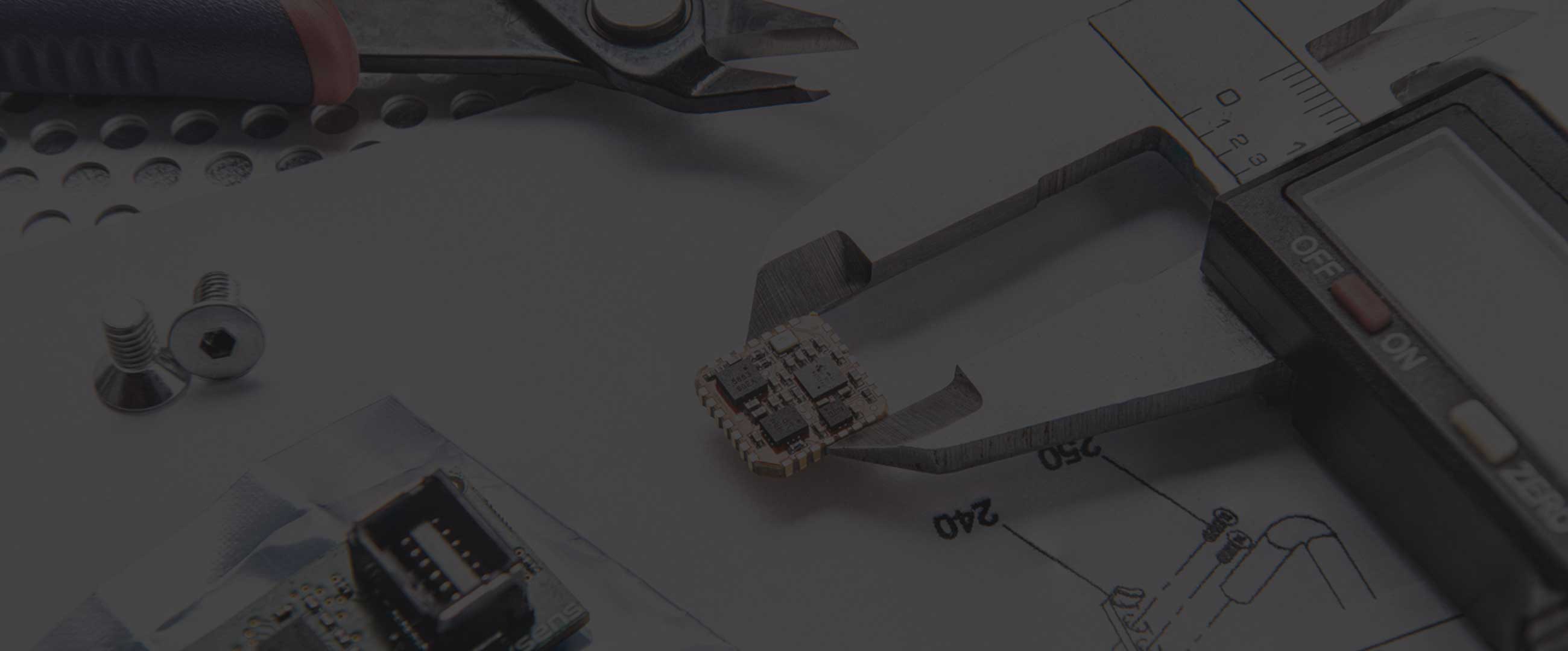

As part of the MTi 1-series, it is among the smallest of its kind available, with each module measuring only 12.1 × 12.1 mm and weighing <1 g.

Icon of a tick mark within a star burst
Comprehensive, all-in-one solution

Suitable for a wide range of (embedded) applications, the MTi-2 is part of the MTi 1-series. It’s a comprehensive, all-in-one solution that eliminates the need for you to design your own system and incorporate separate gyroscopes, accelerometers and other sensors.

Sensor fusion performance
Roll, pitch 0.5 deg RMS
Yaw/heading unreferenced, low drift
Position Strapdown Integration (SDI): Yes
Sensing components
Standard full range 2000 deg/s
In-run bias stability 6 deg/h
Noise density 0.003 °/s/√Hz
Standard full range 16g
In-run bias stability 40 µg
Noise density 70 µg/√Hz
Magnetometer onboard
System specifications
IP-rating (equivalent) IP00
Dimensions 12.1 × 12.1 × 2.55 mm
Weight: 0.6 g
Input voltage 2.8 to 3.6 V
Power consumption (typ.) <100 mW @ 3 V
Interfaces / IO
Interfaces UART, SPI, I²C
Protocols Xbus
Output frequency Up to 1 kHz


Complete and detailed specifications are available at


Free to download MT Software Suite

The MT Software Suite gives you easy access to the MTi-2 and contains a specially developed, easy-to-use graphical user interface, as well as drivers for various operating systems. It also offers many other useful tools, for example source code and documentation.


The suite comes with complete documentation. Of course, you can also always contact our technical support staff if you have questions.

The MT Software Suite includes different software programs, such as:

MT Manager (GUI) MT Manager (GUI)

This provides you with easy access to all the functions of your MTi from the comfort of your office. MT Manager enables recording and playback of data, real-time data viewing, including graphs, and easy configuration of settings.

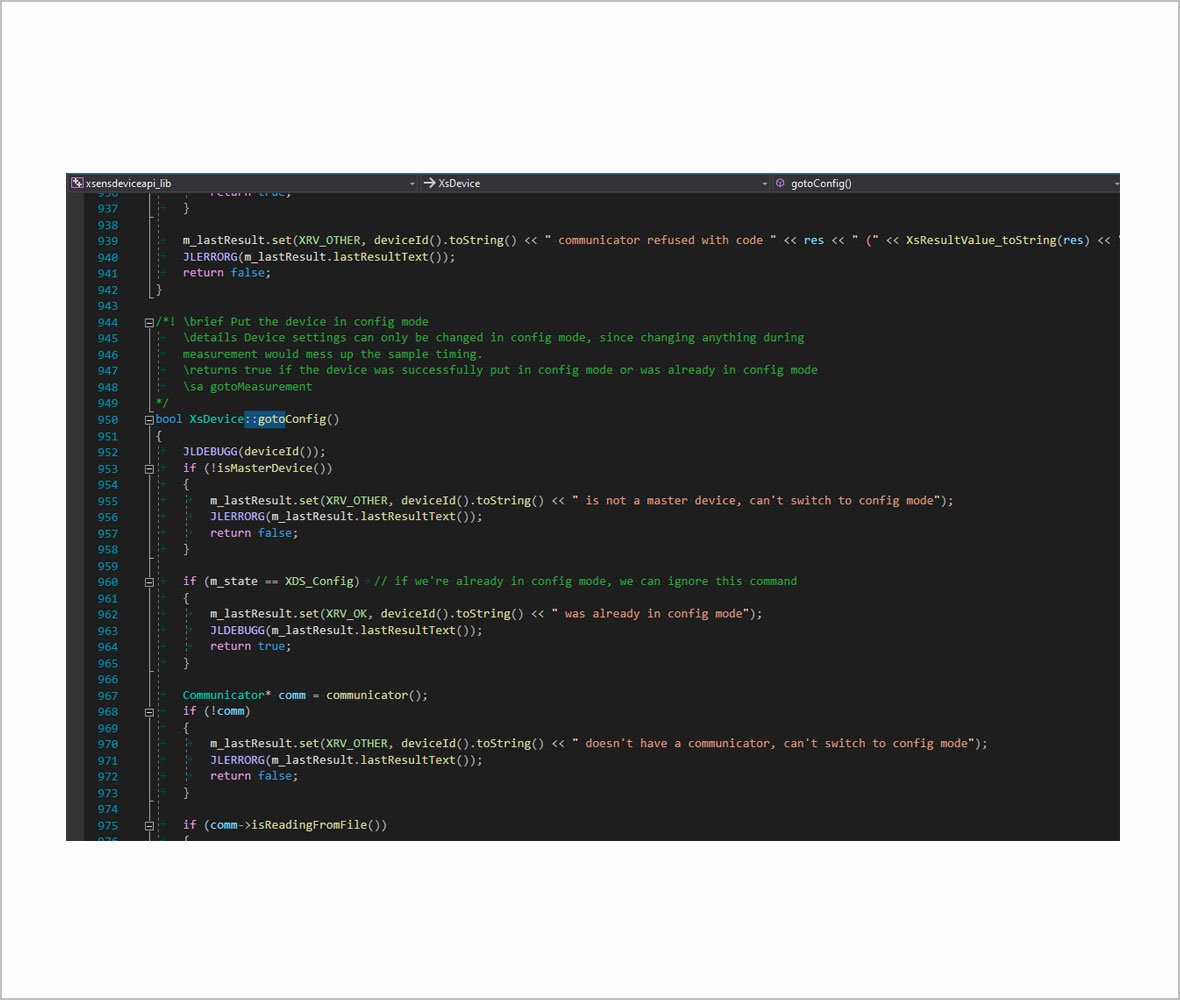

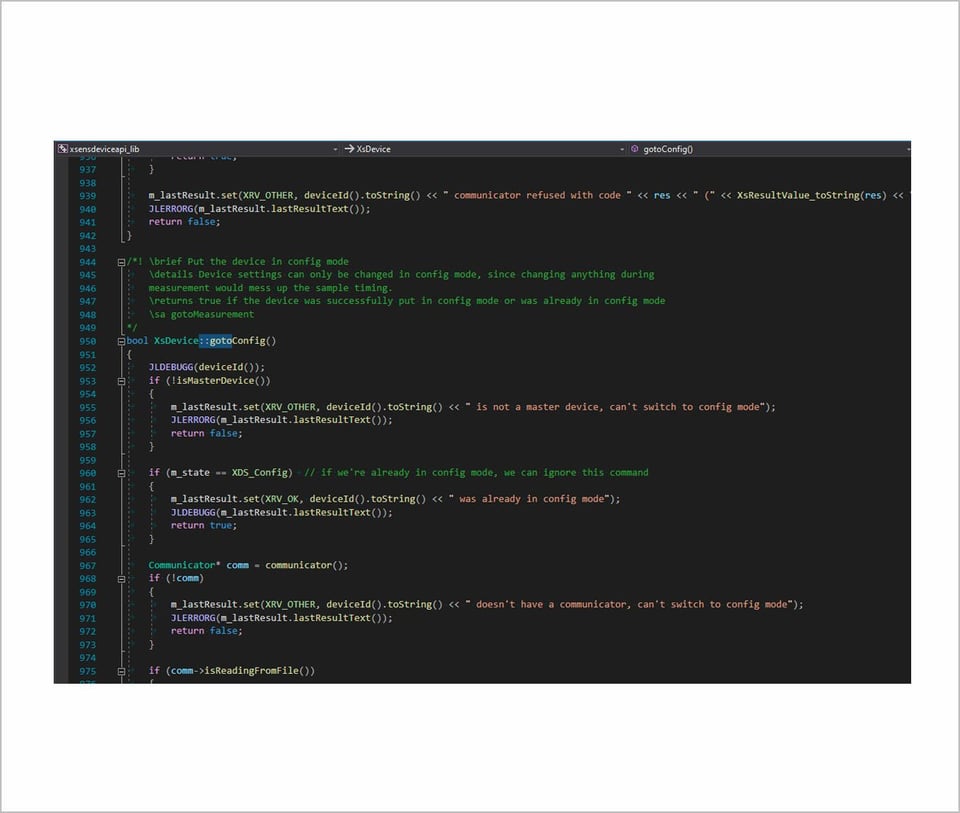

Icon of caret marks representing coding language MT SDK

This program is for self-developing your software to communicate with our sensor, including: programming examples for C, C++, C#, MATLAB, Python, ROS, and Nucleo/STM boards.

Magnetic Field Mapper Magnetic Field Mapper

Magnetic Field Mapper (MFM) is a calibration tool for conducting magnetic calibration, available as GUI for Windows and as SDK.

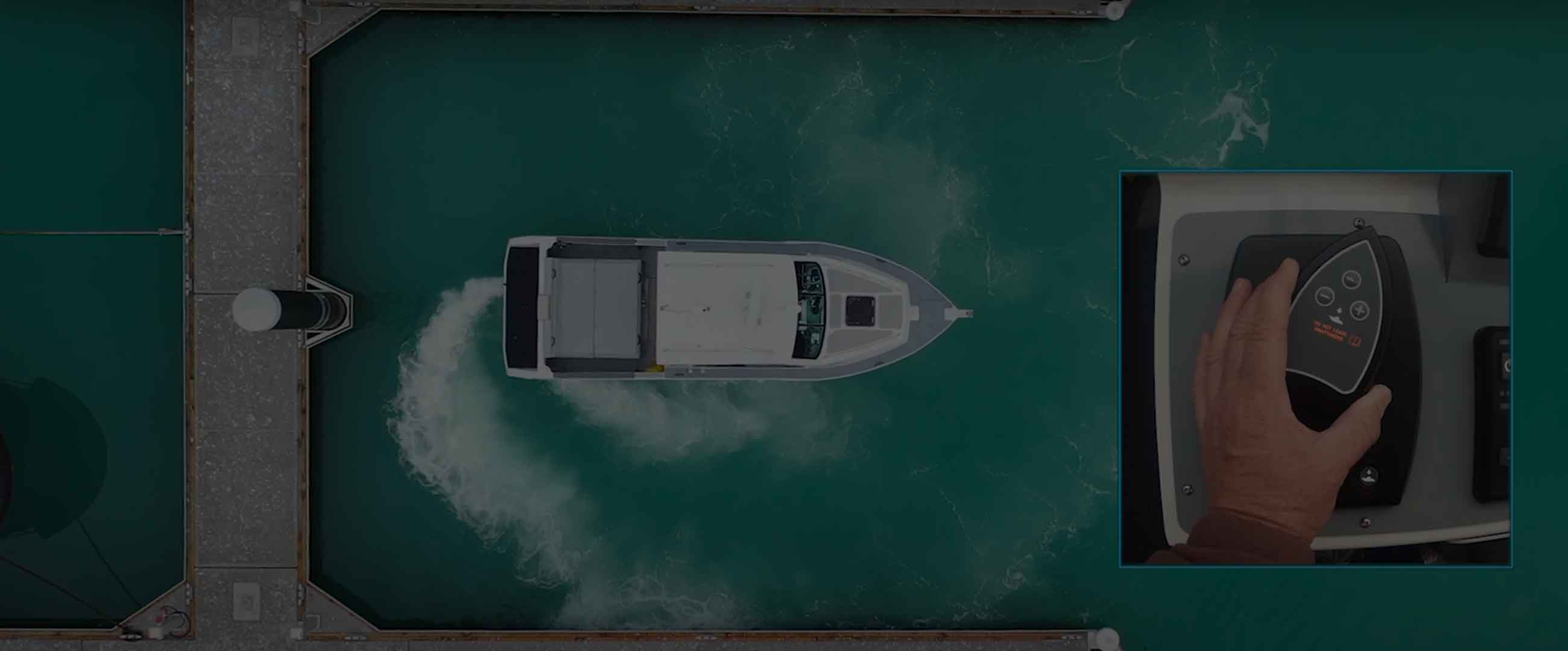

Keeping a boat still on
moving water


A crucial role in this platform is played by an MTi-2 motion tracker from Xsens, providing real-time measurements of roll and pitch to enable the HamiltonJet system to fix the position of a vessel on the water.

Read more →

Ready to buy?

Choose the option that works best for you

development-kit-icon Buy a development kit

If want to work with the MTi-2 for the first time, we recommend getting started with the MTi-3 DK.

Icon of a shopping cart Purchase at a local channel partner

You can purchase an MTi-2 via any of our resellers in or near your country or through an online catalogue.


Find your distributor  →

Icon of a speech bubble Request a quote

For any final questions or comparisons, feel free to contact our product support team.


Request a quote →
